Utility model patent No.: 201922147222.7

QCL-ART is a new type of aeration device independently developed by our company. It consists of four parts: an outer cylinder, an air inlet pipe, a baffle and a wedge structure. The whole is made of all stainless steel materials, with super aeration effect, mechanical properties and corrosion resistance.

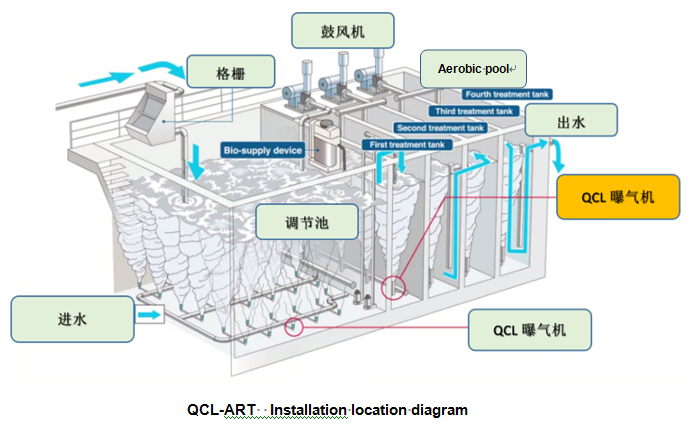

It can be applied to aerobic biochemical tanks for sewage treatment. The equipment is easy to install and can be suspended and fixed; it does not require users to clean the pool or stop production, and supports online installation.




Application
Printing and dyeing, Papermaking, Petroleum, Chemical, etc. and Industrial sewage treatment plants new construction and biochemical tank expansion projects.

Features

【Special structure】During operation, there is no blockage. Suitable for all
high-concentration wastewater treatment ponds.
【Save energy】The pressure loss is small (wind resistance ≤50mm/water column), the
oxygen utilization rate is stable ≥22%, the energy consumption of the blower is reduced by about 30%, and the maintenance cycle of the fan is further reduced.
【Flexible operation】The air volume can be adjusted at any time to continuously maintain
a stable DO value in the pool.
【long lasting】The gas-liquid mixer is sturdy and durable, does not require maintenance,
and has a service life of more than 10 years.
【Super mixing effect】Keep the activated sludge in suspension at all times, and at the
same time prevent siltation at the bottom of the aeration tank.
